Description
Buy WISKA COMBI 308 black junction box 10060581. IP66/IP67 rated polypropylene enclosure with 8 x M20 threaded membrane entries for secure electrical connections and cable installations.
Fast UK Delivery.
Product Code:
10060581
Brand:
WISKA
Colour:
Black

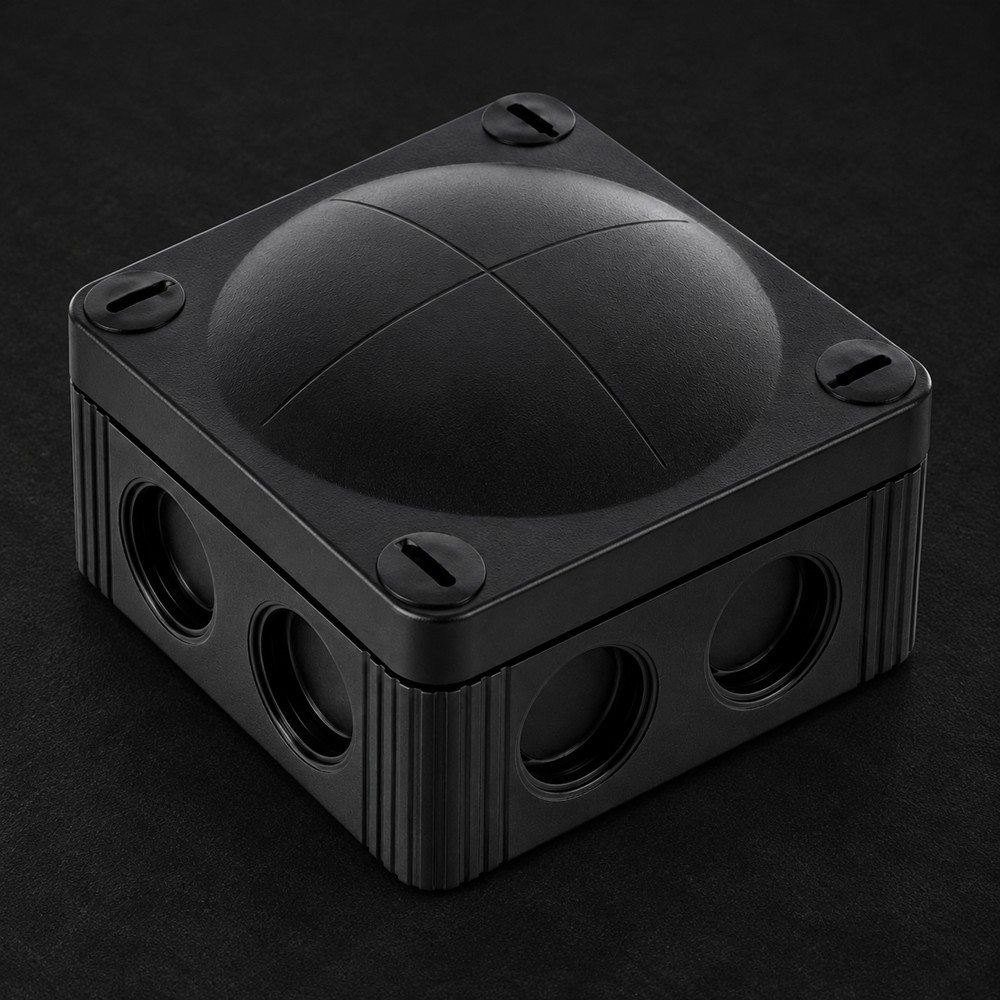

The WISKA COMBI 308 BK is a durable electrical junction box designed for reliable cable connections in demanding indoor and outdoor installations.
Manufactured from polypropylene with a TPE sealing gasket, the enclosure provides IP66 protection when using the membrane entries and IP67 protection when the threaded entries are used together with suitable ESKV cable glands.
The COMBI 308 features 8 x M20 threaded membrane entries suitable for cable diameters from 3mm to 12mm. Four captive cover screws help prevent screws being lost during installation and maintenance.
Supplied as an empty junction box without a terminal block, the 10060581 also includes a mounting clip for convenient installation.
KEY FEATURES
WISKA COMBI 308 junction box
IP66 / IP67 protection
8 x M20 threaded membrane entries
Suitable for cable diameters from 3mm to 12mm
Durable polypropylene construction
TPE sealing gasket
Black RAL 9005 finish
4 captive cover screws
Supplied with mounting clip
4 internal fixing openings
Supplied without terminal block
750°C glow wire tested
Operating temperature: -30°C to +100°C
Installation temperature: -5°C to +60°C
Additional Information
Dimensions: 85mm x 85mm x 51mm
Cable Entries: 8 x M20 x 1.5
Cable Diameter Range: 3mm – 12mm
Material: Polypropylene
Gasket Material: TPE
Colour: Black RAL 9005
Voltage: 400V
Rated Cross Section: 4mm²
EAN: 4007685605816
