Description
Buy WISKA COMBI 607 black junction box 10060648. IP66/IP67 rated polypropylene enclosure with 7 x M25 threaded membrane entries and 3 rear membrane cable entries.
Fast UK Delivery.
Product Code:
10060648
Brand:
WISKA
Colour:
Black

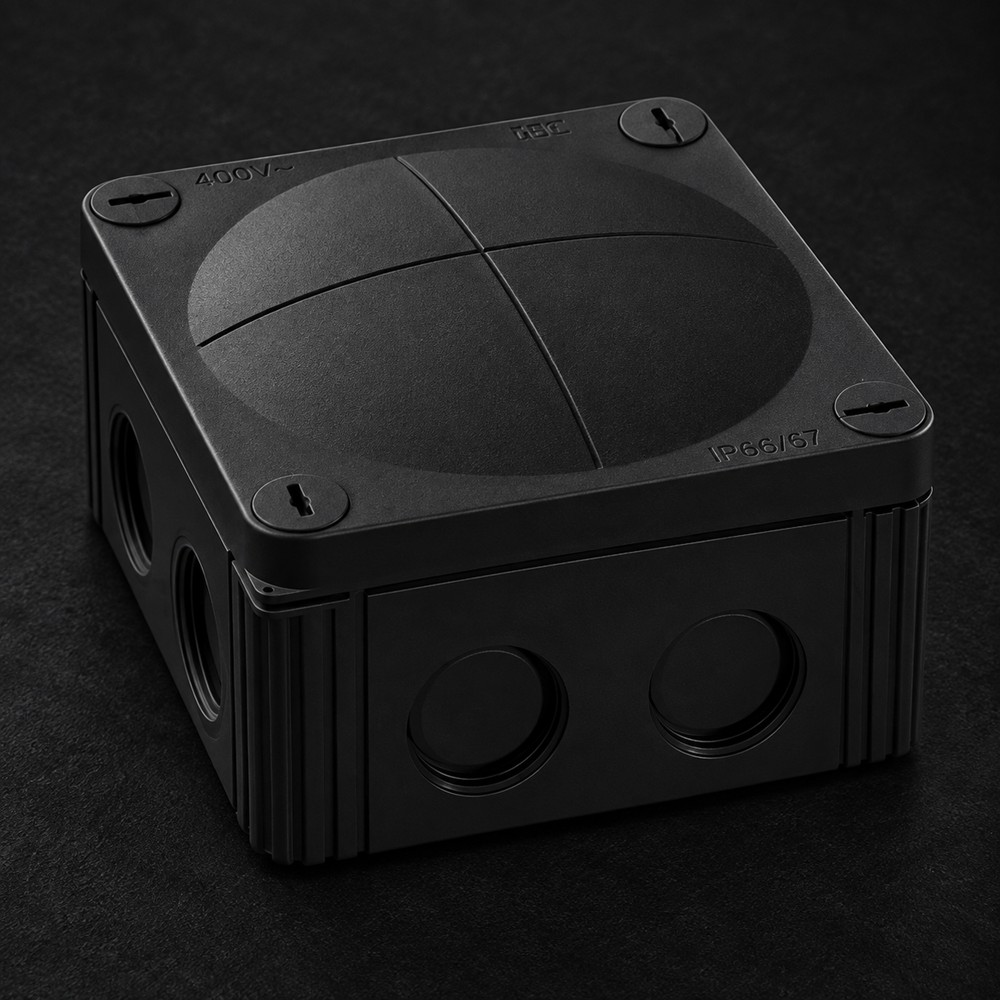

The WISKA COMBI 607 BK is a robust electrical junction box designed for secure cable connections in domestic, commercial and industrial electrical installations.
Manufactured from polypropylene with a TPE sealing gasket, the COMBI 607 provides IP66 protection when using the membrane entries and IP67 protection when the threaded entries are used with suitable WISKA ESKV cable glands.
The enclosure features 7 x M25 threaded membrane entries suitable for cable diameters from 5.2mm to 17mm, together with 3 additional membrane cable entries through the rear of the box.
Four captive cover screws provide secure closure while helping prevent screws from being lost during installation and maintenance. Four internal fixing openings are positioned outside the sealing area.
The 10060648 is supplied as an empty junction box without a terminal block, allowing the required connection system to be selected separately.
KEY FEATURES
WISKA COMBI 607 junction box
IP66 / IP67 protection
7 x M25 threaded membrane entries
3 additional rear membrane cable entries
Suitable for cable diameters from 5.2mm to 17mm
Durable polypropylene construction
TPE sealing gasket
Black RAL 9005 finish
4 captive cover screws
4 internal fixing openings outside sealing area
Supplied empty without terminal block
690V rated voltage
6mm² rated cross section
750°C glow wire tested
Operating temperature: -30°C to +100°C
Installation temperature: -5°C to +60°C
Additional Information
Dimensions: 110mm x 110mm x 66mm
Main Cable Entries: 7 x M25
Rear Cable Entries: 3 x Membrane
Cable Diameter Range: 5.2mm – 17mm
Material: Polypropylene
Gasket Material: TPE
Colour: Black RAL 9005
Voltage: 690V
Rated Cross Section: 6mm²
EAN: 4007685606486
