Description
Buy WISKA COMBI 206 black junction box 10109571. Compact IP66/IP67 rated polypropylene enclosure with 6 x M20 threaded membrane entries and 2 rear membrane cable entries.
Fast UK Delivery.
Product Code:
10109571
Brand:
WISKA
Colour:
Black

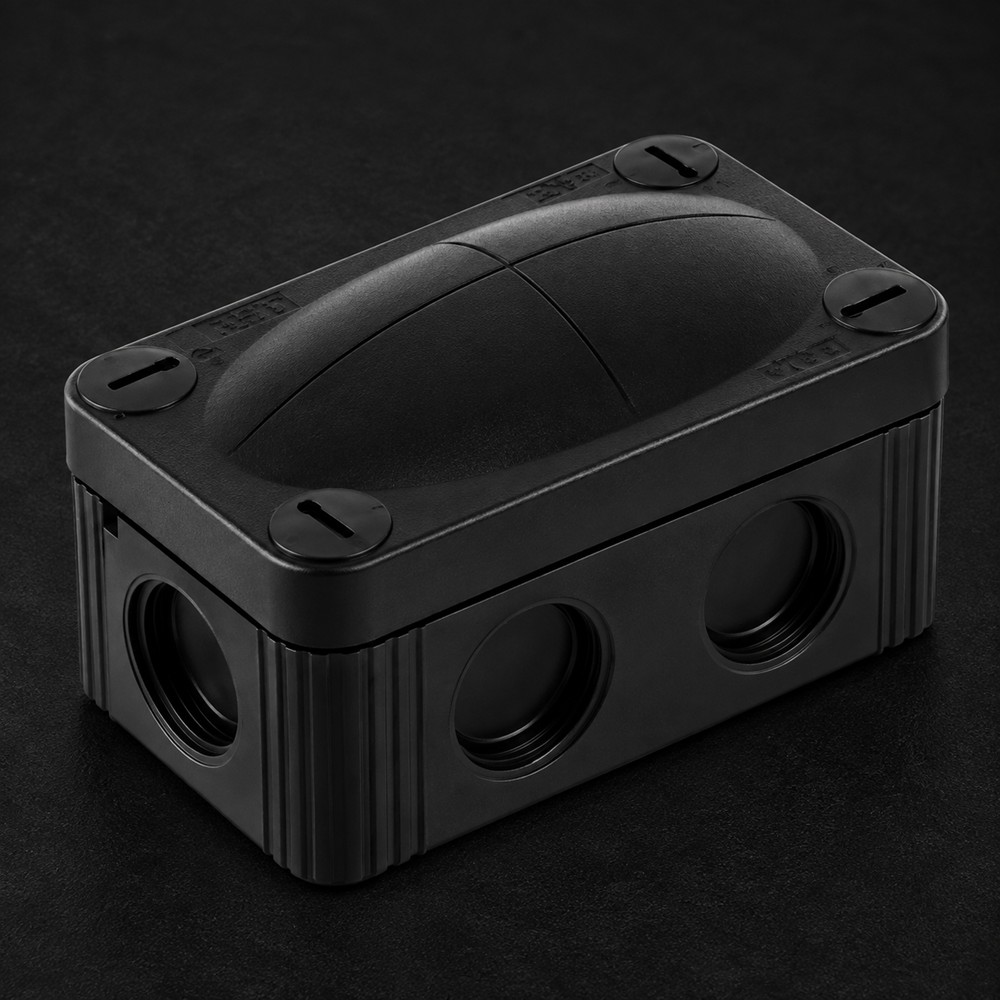

The WISKA COMBI 206 BK is a compact electrical junction box designed for secure cable connections in indoor and outdoor electrical installations.
Manufactured from durable polypropylene with a TPE sealing gasket, the COMBI 206 provides IP66 protection when using the membrane entries and IP67 protection when the threaded entries are used with suitable WISKA ESKV cable glands.
The enclosure features 6 x M20 threaded membrane entries suitable for cable diameters from 3mm to 12mm, together with 2 additional membrane cable entries through the rear of the box.
Four captive cover screws help prevent screws from being lost during installation and maintenance, while four internal fixing openings are positioned outside the sealing area.
The 10109571 is supplied as an empty junction box without a terminal block, allowing the installer to select the connection method required for the application.
KEY FEATURES
WISKA COMBI 206 junction box
Compact 85mm x 49mm enclosure
IP66 / IP67 protection
6 x M20 threaded membrane entries
2 additional rear membrane cable entries
Suitable for cable diameters from 3mm to 12mm
Durable polypropylene construction
TPE sealing gasket
Black RAL 9005 finish
4 captive cover screws
4 internal fixing openings
Supplied without terminal block
750°C glow wire tested
Operating temperature: -30°C to +100°C
Installation temperature: -5°C to +60°C
Additional Information
Dimensions: 85mm x 49mm x 51mm
Main Cable Entries: 6 x M20
Rear Cable Entries: 2 x Membrane
Cable Diameter Range: 3mm – 12mm
Material: Polypropylene
Gasket Material: TPE
Colour: Black RAL 9005
Voltage: 400V
Rated Cross Section: 1.5mm²
EAN: 4007686094565
