Description
Buy WAGO 221-612 2 conductor lever connector. Compact 221 Series splicing connector suitable for solid, stranded and fine-stranded conductors from 0.5mm² to 6mm².
Fast UK Delivery.
Product Code:
221-612
Brand:
WAGO
Colour:
Transparent

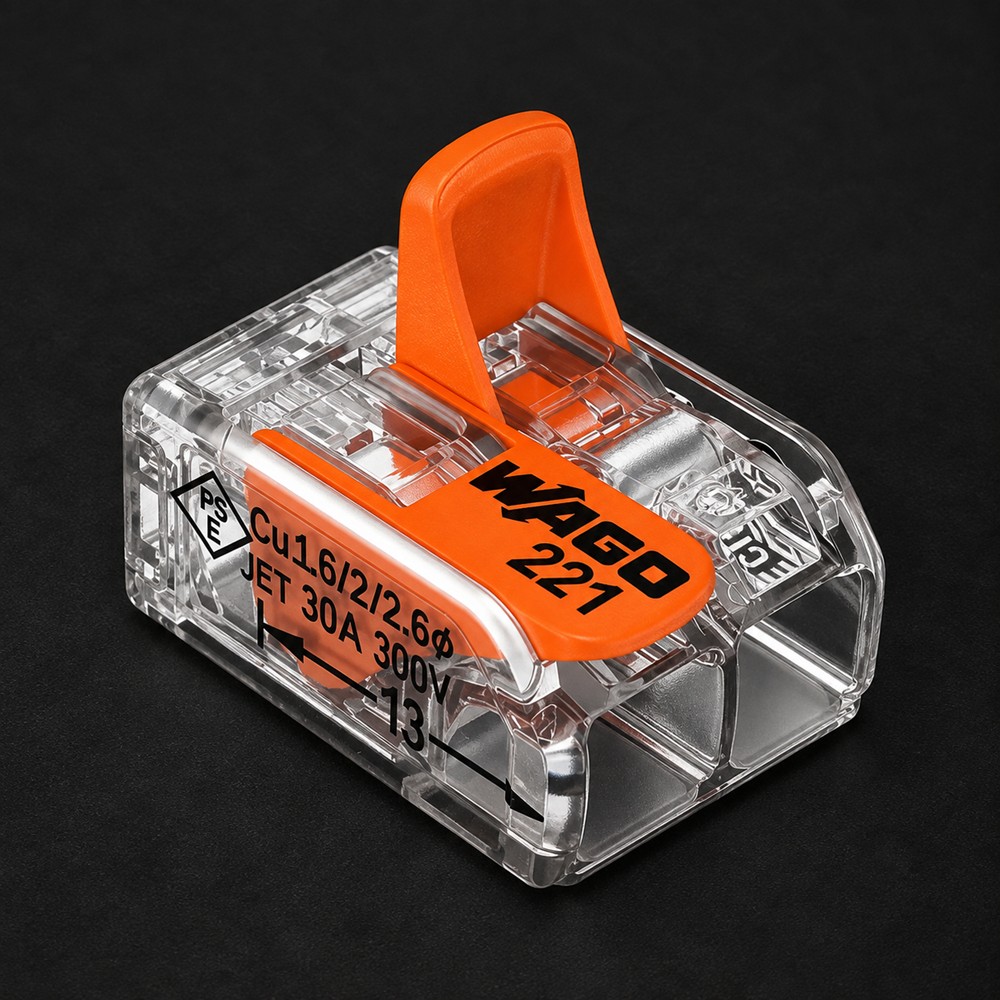

The WAGO 221-612 is a compact 2 conductor splicing connector designed for fast and reliable electrical connections using WAGO's easy-to-operate lever connection system.
Suitable for solid, stranded and fine-stranded conductors from 0.5mm² to 6mm², the 221-612 allows different conductor types and sizes to be connected without tools.
The transparent housing allows the conductor position to be visually checked, while the lever mechanism makes conductors easy to connect and disconnect when required.
Rated at 41A and 450V, the 221-612 is part of WAGO's larger 6mm² 221 Series connector range.
KEY FEATURES
2 conductor lever connector
Suitable for conductors from 0.5mm² to 6mm²
Suitable for solid conductors
Suitable for stranded conductors
Suitable for fine-stranded conductors
41A rated current
450V rated voltage
Lever-operated connection
Tool-free conductor termination
Transparent housing for visual inspection
12–14mm conductor strip length
Part of the WAGO 221 Series
Maximum surrounding air temperature: 85°C (T85)
Additional Information
Conductor Range: 0.5mm² – 6mm²
Rated Current: 41A
Rated Voltage: 450V
Strip Length: 12–14mm
Dimensions: 21.3mm x 15.8mm x 9.8mm
Number of Connection Points: 2
