Description
Buy WAGO 221-613 3 conductor lever connector. Compact 221 Series splicing connector suitable for solid, stranded and fine-stranded conductors from 0.5mm² to 6mm².
Fast UK Delivery.
Product Code:
221-613
Brand:
WAGO
Colour:
Transparent

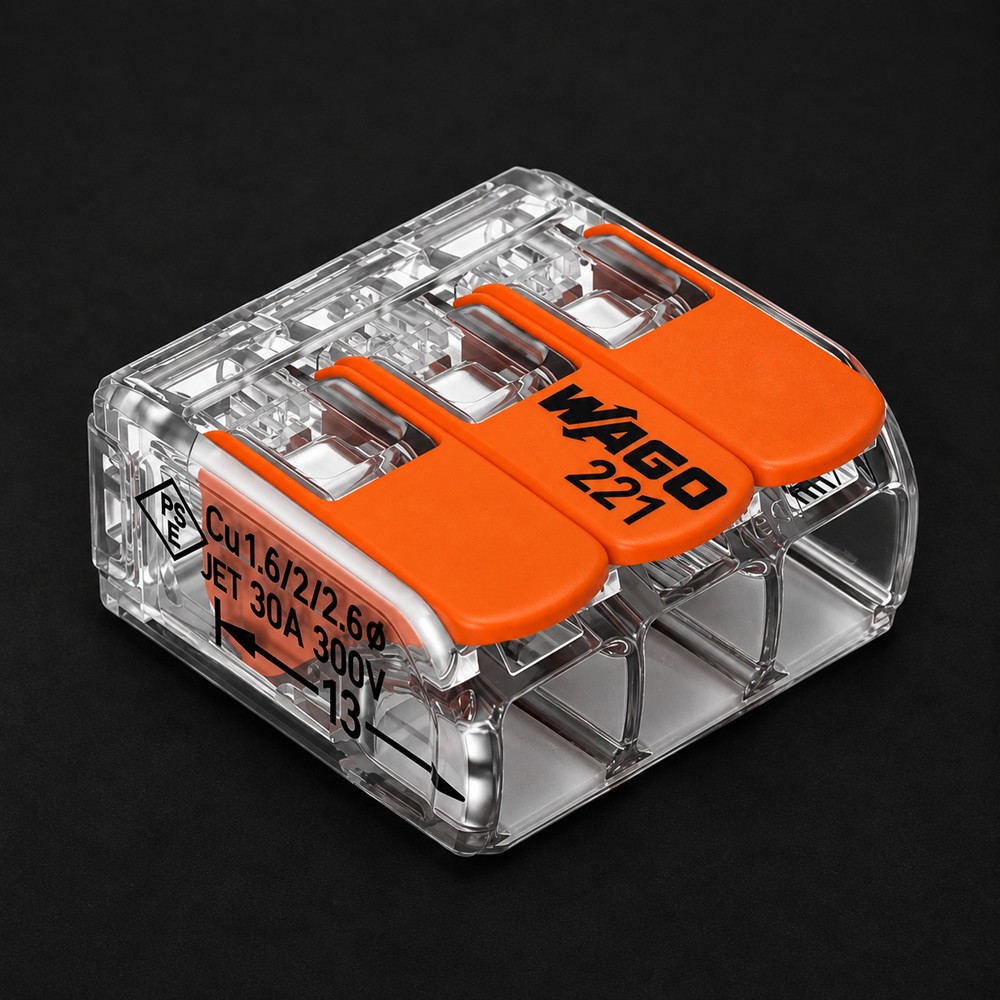

The WAGO 221-613 is a compact 3 conductor splicing connector designed for fast and reliable electrical connections using WAGO's lever connection system.
Suitable for solid, stranded and fine-stranded conductors from 0.5mm² to 6mm², the 221-613 allows different conductor types and sizes to be connected without tools.
The transparent housing provides clear visibility of the conductor position, while the lever-operated design makes conductors quick to connect and disconnect when required.
Rated at 41A and 450V, the 221-613 forms part of WAGO's larger 6mm² 221 Series connector range.
KEY FEATURES
3 conductor lever connector
Suitable for conductors from 0.5mm² to 6mm²
Suitable for solid, stranded and fine-stranded conductors
41A rated current
450V rated voltage
Lever-operated connection
Tool-free conductor termination
Transparent housing for visual inspection
12–14mm conductor strip length
Part of the WAGO 221 Series
Maximum surrounding air temperature: 85°C (T85)
Additional Information
Conductor Range: 0.5mm² – 6mm²
Rated Current: 41A
Rated Voltage: 450V
Strip Length: 12–14mm
Dimensions: 22.7mm x 21.3mm x 9.8mm
Number of Connection Points: 3
