Description
Buy FuseBox EV32ABDZ 32A EV charger distribution board. Supplied with a Type A 30mA bi-directional RCBO and Type 2 surge protection for EV charging installations.
Fast UK Delivery.
Product Code:
EV32ABDZ
Brand:
FuseBox
Colour:
White

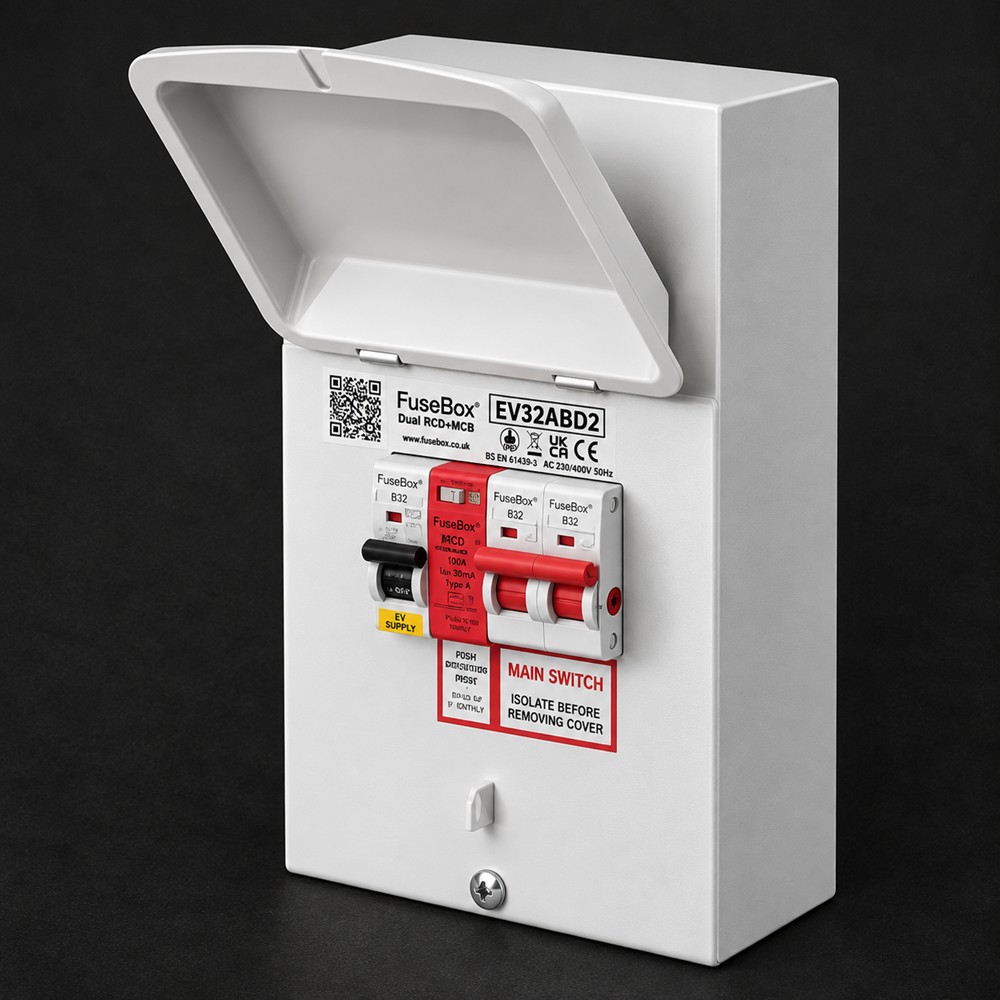

The FuseBox EV32ABDZ is a dedicated EV charger distribution board designed to provide circuit protection for electric vehicle charging installations.
It features a 32A Type A bi-directional RCBO with 30mA residual current protection and B curve tripping characteristics. The 1P+N switched RCBO provides bi-directional operation, making the unit suitable for installations where current may flow in either direction.
Type 2 surge protection is incorporated into the unit, providing additional protection against transient overvoltages.
The EV32ABDZ is housed in a durable 1mm steel enclosure with a smooth RAL 9001 powder-coated finish and is suitable for 230V AC installations.
KEY FEATURES
32A EV charger distribution board
32A Type A RCBO
Bi-directional RCBO
30mA residual operating current
B curve tripping characteristic
1P+N switched protection
Type 2 surge protection device (SPD)
230V AC rated voltage
50/60Hz frequency
1mm steel enclosure
RAL 9001 smooth powder-coated finish
35mm DIN rail mounting
IP2XC protection degree
Conforms to BS EN 61439-3
Additional Information
Dimensions: 261mm x 152mm x 93mm
Weight: 2.5kg
Maximum DC Current: 6mA
Maximum Terminal Bar Capacity: 16mm²
Terminal Bar Tightening Torque: 2.0Nm
GTIN-13: 5060523526741
